    ZPR-D SERIES DIRECT MODULAR REDUCING VALVES

    ZPR-D SERIES DIRECT MODULAR REDUCING VALVES Featured Image
    • ZPR-D SERIES DIRECT MODULAR REDUCING VALVES

    Short Description:

    4

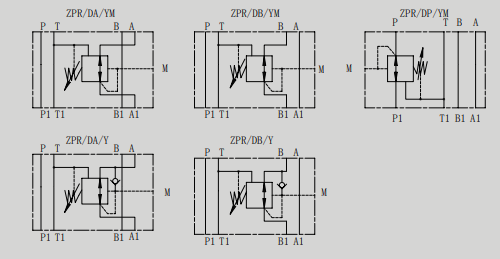

    ZPR-D series are 3-way direct operated pressure reducing valves, which are used to reduce the pressure in a certain circuit lower than of the main circuit.


    Download as PDF

    Product Detail

    Product Tags

    ZPR-D series are 3-way direct operated pressure reducing valves, which are used to reduce the pressure in a certain circuit lower than of the main circuit.

    Size 6 10
    Operating pressure(Mpa) 31.5 31.5
    Second working pressure(Mpa) 21 21
    Back pressure(MPa)  6 6
    Flow rate(L/min)  30 60
    Fluid temperature(℃) -20～80 -20～80
    Weight(KGS) 1.3 2.8
    Valve body（Material）Surface treatment casting phosphating surface
    Oil cleanliness NAS1638 class 9 and ISO4406 class 20/18/15

    ZPR6D External Dimensions and Fittings

    22222

    33333
