    Z2FDS SERIES DOUBLE THROTTLE CHECK VALVES

    Z2FDS SERIES DOUBLE THROTTLE CHECK VALVES Featured Image
    Loading...
    • Z2FDS SERIES DOUBLE THROTTLE CHECK VALVES

    Short Description:

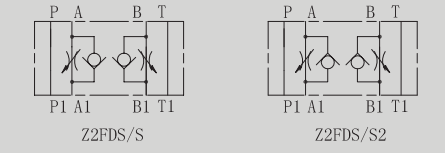

    TIM图片20180711143507

    Z2FDS series double throttle/check valves are used to restrict flow in one direction while allowing free-flow in the opposite direction as check valves.


    Download as PDF

    Product Detail

    Product Tags

    Z2FDS series double throttle/check valves are used to restrict flow in one direction while allowing free-flow in the opposite direction as check valves.

    Size 6 10 16 22
    Operating pressure (MPa)  31.5  31.5  31.5  31.5
    Flow rate (L/min) 80 160 250 350
    Fluid temperature range（℃） -30～80℃ -30～80℃ -30～80℃ -30～80℃
    Weight(KGS) 1 2.2 4.7 8
    Valve body（Material）Surface treatment casting phosphating surface
    Oil cleanliness NAS1638 class 9 and ISO4406 class 20/18/15

    2222

    Z2FDS6 External Dimensions and Fittings

    3333

    Z2FDS10 External Dimensions and Fittings

    4444

    Z2FDS16 External Dimensions and Fittings

    5555

    Z2FDS22 External Dimensions and Fittings

    6666
