    Z2DS SERIES PILOT CONTROLLED MODULAR CHECK VALVES

    Z2DS SERIES PILOT CONTROLLED MODULAR CHECK VALVES Featured Image
    • Z2DS SERIES PILOT CONTROLLED MODULAR CHECK VALVES

    Short Description:

    TIM图片20180711144609

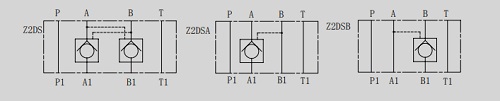

    Z2DS series are pilot operated style sandwich valves. These valves used to close one or two actuator ports.


    Download as PDF

    Product Detail

    Product Tags

    Z2DS series are pilot operated style sandwich valves. These valves used to close one or two actuator ports.

    Technical data

    Size 6 10 16 22
    Operating pressure (MPa) 31.5 31.5 31.5 31.5
    Flow rate (L/min) 50 80 200 300
    Fluid temperature range（℃） -30～80℃ -30～80℃ -30～80℃ -30～80℃
    Weight(KGS) 1 2.2 6.8 12.8
    Valve body（Material）Surface treatment casting phosphating surface
    Oil cleanliness NAS1638 class 9 and ISO4406 class 20/18/15

    1

    Z2DS6 External Dimensions and Fittings

    2

    Z2DS10 External Dimensions and Fittings

    3
