Key Takeaways
- Directional control valves are essential for managing hydraulic fluid flow, ensuring efficient operation in various industries like manufacturing, automotive, and construction.
- When selecting a valve, consider key factors such as flow rate, pressure rating, material durability, size compatibility, and specific application requirements to ensure optimal performance.
- The Parker P70CF is recommended as the best overall valve due to its high performance and reliability, making it ideal for heavy-duty industrial applications.
- For budget-conscious buyers, the Gresen Model SP offers a versatile and affordable option, suitable for general-purpose hydraulic systems.
- Precision applications benefit from the Vickers Solenoid Operated Valve, which provides exceptional flow control, making it ideal for industries requiring meticulous hydraulic management.
- Always match the valve specifications with your system’s operational needs to avoid inefficiencies and ensure long-term reliability.
- Regular maintenance of directional control valves is crucial for optimal performance, especially in high-pressure environments; inspect and clean components as needed.
Overview of Directional Control Valves
What Are Directional Control Valves?
Directional control valves serve as essential components in hydraulic systems. They regulate the flow of hydraulic fluid, ensuring that it moves efficiently to power various actuators like cylinders and motors. These valves determine the direction of fluid flow, enabling precise control over machinery operations. Without them, hydraulic systems would lack the ability to perform specific tasks effectively.
In industries such as manufacturing, automotive, and construction, these valves play a pivotal role. For instance, in manufacturing, they guide hydraulic fluid to operate assembly line equipment. In the automotive sector, they control hydraulic systems in vehicles, such as braking and steering mechanisms. Construction equipment like excavators and cranes also relies on these valves to manage heavy loads and perform complex movements. Their versatility makes them indispensable across multiple fields.
Key Factors to Consider When Choosing a Valve
Selecting the right directional control valve requires careful evaluation of several factors. Each factor ensures the valve aligns with the system’s requirements and delivers optimal performance.
Flow Rate and Pressure Rating
The flow rate and pressure rating of a valve determine its capacity to handle hydraulic fluid. A valve with an inadequate flow rate can restrict fluid movement, leading to inefficiencies. Similarly, a valve with a lower pressure rating than the system’s requirements may fail under stress. Always match the valve’s specifications with the system’s operational needs.
Material and Durability
The material of a valve significantly impacts its durability and resistance to wear. Stainless steel valves, for example, offer excellent corrosion resistance, making them suitable for harsh environments. Brass and aluminum valves, while lighter, may not withstand extreme conditions as effectively. Choose a material that complements the operating environment and ensures long-term reliability.
Size and Compatibility with Existing Systems
The valve’s size must align with the system’s dimensions to ensure seamless integration. An oversized or undersized valve can disrupt the system’s functionality. Compatibility with existing components, such as fittings and actuators, is equally important. Verify the valve’s specifications to avoid installation challenges.
Cost and Budget Considerations
Cost plays a crucial role in the decision-making process. While high-end valves often offer advanced features and superior performance, they may exceed budget constraints. Conversely, budget-friendly options may lack certain capabilities. Striking a balance between cost and functionality ensures value for money without compromising performance.
Application-Specific Requirements
Different applications demand specific valve features. For industrial use, valves with high-pressure ratings and robust construction are ideal. Automotive applications may require compact, lightweight valves with leak-proof designs. Understanding the unique needs of the application helps in selecting a valve that delivers optimal results.

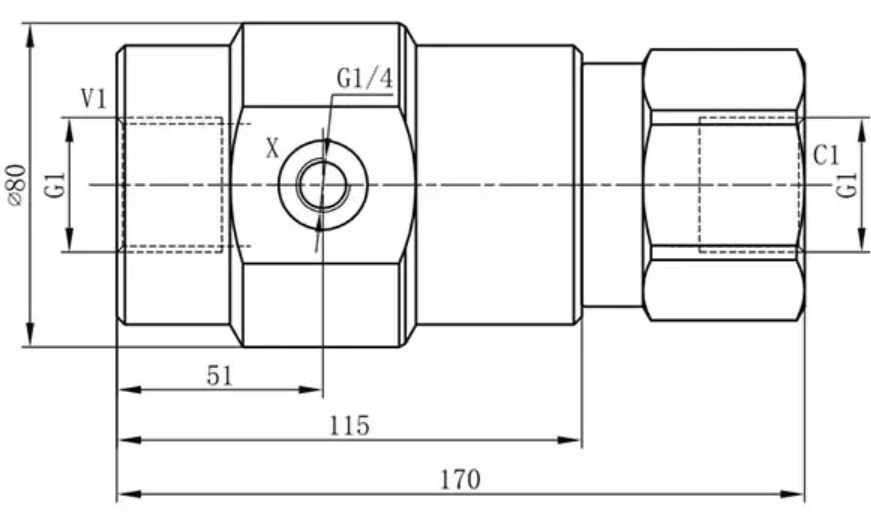

“Flow is allowed to pass in one direction (V1 to C1 or V2 to C2), then the valve remains closed (checked) in both reverse directions (C1 to V1 or C2 to V2) in order to hold and lock in position the cylinder or other actuators; reverse flow is possible only when sufficient pilot pressure is applied at V2 or V1, which act as cross-connected pilot ports, and the pilot piston lifts the poppet from its seat overcoming cylinder port pressure.”
By considering these factors, you can make an informed decision when choosing a directional control valve. This ensures the valve meets the system’s demands and enhances overall efficiency.
Comparison Table of Top 5 Directional Control Valves
When comparing directional control valves, I focus on key specifications that directly impact their performance and suitability for various applications. Below, I’ve outlined the critical factors to consider and how the top five models stack up against each other.
Key Specifications Compared
Flow Rate (e.g., gallons per minute or liters per minute)
Flow rate determines how much hydraulic fluid a valve can handle within a specific time. Parker P70CF offers a high flow rate, making it ideal for heavy-duty industrial systems. Gresen Model SP, with its single-spool design, supports moderate flow rates suitable for general-purpose use. Vickers Solenoid Operated Valve excels in precision flow control, while Brand Hydraulics P20A000620 provides smooth load control for light applications. Danfoss DG4S4 balances flow rate flexibility with its 2 or 4-way operation.
Pressure Rating (e.g., PSI or bar)
Pressure rating defines the maximum pressure a valve can withstand. Parker P70CF leads with its robust design, handling high-pressure systems effortlessly. Gresen Model SP supports moderate pressures, fitting well in standard hydraulic setups. Vickers Solenoid Operated Valve ensures precise control under varying pressures. Brand Hydraulics P20A000620 works best in low to medium-pressure environments. Danfoss DG4S4 offers versatility but may require regular maintenance in high-pressure systems.
Material (e.g., stainless steel, brass, or aluminum)
Material choice affects durability and resistance to wear. Parker P70CF uses high-grade materials, ensuring long-term reliability in harsh conditions. Gresen Model SP features a sturdy build, though it may not match the corrosion resistance of stainless steel. Vickers Solenoid Operated Valve incorporates durable components for precision systems. Brand Hydraulics P20A000620 prioritizes lightweight materials for compact designs. Danfoss DG4S4 combines robust construction with flexibility, making it suitable for diverse environments.
Size and Weight
Size and weight influence installation and compatibility. Parker P70CF, though slightly larger, integrates seamlessly into industrial systems. Gresen Model SP’s compact design simplifies installation in smaller setups. Vickers Solenoid Operated Valve offers a balanced size for precision applications. Brand Hydraulics P20A000620 stands out for its lightweight and compact structure, perfect for automotive use. Danfoss DG4S4 provides a versatile size range, accommodating various configurations.
Price Range
Price often dictates the feasibility of a valve for specific projects. Parker P70CF, with its advanced features, falls into the premium category. Gresen Model SP offers an affordable option without compromising versatility. Vickers Solenoid Operated Valve, while slightly pricier, justifies its cost with precision and reliability. Brand Hydraulics P20A000620 provides a cost-effective solution for light-duty applications. Danfoss DG4S4 sits in the mid-range, balancing performance and affordability.
“Flow is allowed to pass in one direction (V1 to C1 or V2 to C2), then the valve remains closed (checked) in both reverse directions (C1 to V1 or C2 to V2) in order to hold and lock in position the cylinder or other actuators; reverse flow is possible only when sufficient pilot pressure is applied at V2 or V1, which act as cross-connected pilot ports, and the pilot piston lifts the poppet from its seat overcoming cylinder port pressure.”
This comparison highlights the unique strengths of each model. By evaluating these specifications, you can identify the valve that aligns with your system’s requirements and operational goals.
Detailed Analysis of Each Model
Model 1: Parker P70CF
Key features and specifications
The Parker P70CF stands out for its high-performance capabilities. It includes detailed hydraulic circuit diagrams, which simplify system integration and troubleshooting. The valve also carries CSA approvals, ensuring compliance with stringent safety and quality standards. Its robust design makes it suitable for demanding environments.
Pros and cons
I find the Parker P70CF highly reliable. Its explosion-proof construction enhances safety in hazardous conditions. However, its advanced features come at a higher price point, which may not suit all budgets. Despite this, the durability and performance justify the investment for industrial applications.
Best applications and industries
This model excels in industrial and heavy-duty applications. It handles high-pressure systems with ease, making it ideal for manufacturing plants and construction equipment. I recommend it for operations requiring consistent performance under challenging conditions.
Model 2: Gresen Model SP
Key features and specifications
The Gresen Model SP features a 1-spool design, offering simplicity and efficiency. It allows for customizable modifications, enabling users to adapt the valve to specific operational needs. This flexibility makes it a versatile choice for various hydraulic systems.
Pros and cons
The Gresen Model SP offers versatility and ease of customization. Its straightforward design simplifies maintenance and reduces downtime. However, its single-spool configuration limits its use in more complex systems. For general-purpose applications, though, it performs exceptionally well.
Best applications and industries
This model works best in general-purpose hydraulic systems. It suits industries where moderate flow rates and pressures are sufficient. I recommend it for small-scale manufacturing setups and agricultural machinery.
Model 3: Vickers Solenoid Operated Valve
Key features and specifications
The Vickers Solenoid Operated Valve incorporates milled metering notches on the spool. These notches enable precise control of flow rate changes, ensuring smooth operation. Its design prioritizes accuracy, making it a top choice for precision hydraulic systems.
Pros and cons
I appreciate the excellent flow control this valve provides. It ensures consistent performance in applications requiring high accuracy. However, installation may require skilled technicians due to its intricate design. This could increase initial setup costs but pays off in long-term reliability.
Best applications and industries
This model is ideal for precision hydraulic systems. It suits industries like aerospace and medical equipment manufacturing, where accuracy is critical. I recommend it for operations that demand meticulous control over hydraulic fluid flow.
Model 4: Brand Hydraulics P20A000620
Key features and specifications
The Brand Hydraulics P20A000620 stands out for its innovative design. It features O-ring ports, which effectively prevent leakage during operation. This design ensures a secure seal, reducing the risk of hydraulic fluid loss. Additionally, the valve incorporates metering spools that provide smooth load control. These spools enhance the precision of fluid flow, making the valve reliable for applications requiring consistent performance.
Pros and cons
I find the leak-proof design of this valve to be one of its strongest advantages. The O-ring ports significantly minimize maintenance needs by preventing fluid seepage. The metering spools also contribute to smoother operations, which is essential for systems requiring steady load management. However, this valve may not perform optimally in high-pressure systems. Its design caters more to low to medium-pressure environments, which could limit its use in certain industrial applications.
Best applications and industries
This model excels in automotive and light industrial applications. Its compact and lightweight structure makes it ideal for vehicles, where space constraints are common. I recommend it for systems like hydraulic steering or braking mechanisms. In light industrial settings, it performs well in machinery that operates under moderate pressure. For users seeking a reliable valve for these specific scenarios, the Brand Hydraulics P20A000620 offers an excellent solution.
Model 5: Danfoss DG4S4
Key features and specifications
The Danfoss DG4S4 showcases a unique air-gap solenoid design. This feature enhances its operational flexibility, allowing it to function as either a 2-way or 4-way valve. The dual configuration capability makes it adaptable to a wide range of hydraulic systems. Its robust construction ensures durability, even in demanding environments. This valve provides users with the versatility needed for various industrial and commercial applications.
Pros and cons
The flexible configuration of this valve is a major advantage. Users can easily adapt it to meet specific system requirements, which adds to its appeal. Its durable build ensures long-term reliability, even under challenging conditions. However, I have noticed that the valve may require higher maintenance compared to other models. The air-gap solenoid design, while innovative, can lead to increased upkeep over time. This could be a consideration for users prioritizing low-maintenance solutions.
Best applications and industries
The Danfoss DG4S4 is suitable for a wide range of industries. Its versatility makes it a preferred choice for systems requiring adaptable configurations. I recommend it for manufacturing plants, where machinery often demands flexible hydraulic solutions. It also performs well in construction equipment, offering reliable operation in heavy-duty tasks. For users seeking a valve that balances flexibility and durability, this model is an excellent option.
Recommendations
Best Overall Model
Parker P70CF: Stands out for its high performance, reliability, and CSA approvals, making it ideal for industrial applications.
The Parker P70CF earns its place as the best overall model. Its high-performance capabilities ensure smooth operation in demanding environments. I value its CSA approvals, which guarantee compliance with strict safety standards. This valve excels in industrial applications where reliability and durability are critical. Its explosion-proof design enhances safety, making it a dependable choice for heavy-duty systems. For users seeking a robust and efficient solution, the Parker P70CF delivers unmatched performance.
Best for Specific Applications
Industrial use: Parker P70CF for heavy-duty applications.
For industrial use, I recommend the Parker P70CF. Its ability to handle high-pressure systems makes it perfect for manufacturing plants and construction equipment. The valve’s detailed hydraulic circuit diagrams simplify integration into complex systems. Its sturdy construction ensures long-term reliability, even in harsh conditions. This model is ideal for operations requiring consistent performance under heavy loads.
Automotive use: Brand Hydraulics P20A000620 for its compact and leak-proof design.
In automotive applications, the Brand Hydraulics P20A000620 stands out. Its compact size fits seamlessly into vehicles with limited space. The O-ring ports prevent leakage, ensuring efficient operation in hydraulic steering and braking systems. I find its lightweight design particularly useful for automotive setups. This valve offers a reliable solution for users prioritizing precision and space efficiency.
Other niche applications: Vickers Solenoid Operated Valve for precision hydraulic systems.
For niche applications requiring precision, I recommend the Vickers Solenoid Operated Valve. Its milled metering notches provide exceptional control over flow rate changes. This feature makes it indispensable in industries like aerospace and medical equipment manufacturing. Although installation may require skilled technicians, the valve’s accuracy justifies the effort. It is the best choice for systems demanding meticulous hydraulic control.
Budget-Friendly Option
Gresen Model SP: Affordable and versatile with customizable features.
The Gresen Model SP offers an excellent budget-friendly option. Its affordability does not compromise its versatility. The single-spool design supports various modifications, allowing users to adapt it to specific needs. I appreciate its straightforward construction, which simplifies maintenance and reduces downtime. While it may not suit complex systems, it performs exceptionally well in general-purpose hydraulic setups. For users seeking a cost-effective yet reliable valve, the Gresen Model SP is a smart choice.
“Flow is allowed to pass in one direction (V1 to C1 or V2 to C2), then the valve remains closed (checked) in both reverse directions (C1 to V1 or C2 to V2) in order to hold and lock in position the cylinder or other actuators; reverse flow is possible only when sufficient pilot pressure is applied at V2 or V1, which act as cross-connected pilot ports, and the pilot piston lifts the poppet from its seat overcoming cylinder port pressure.”
By considering these recommendations, you can select a directional control valve that aligns with your system’s requirements and budget. Each model offers unique strengths, ensuring a tailored solution for every application.
The Parker P70CF stands out as the best overall directional control valve due to its exceptional performance and reliability. For those on a budget, the Gresen Model SP offers a versatile and cost-effective solution. Each valve I reviewed has unique strengths tailored to specific applications, ensuring there’s an option for every need.
When selecting a valve, focus on key specifications like flow rate, pressure rating, and material. Assess your system’s requirements carefully. Matching these needs with the right valve ensures optimal performance and long-term efficiency. Make an informed choice to enhance your hydraulic system’s functionality.
FAQ
What is the primary function of a directional control valve?
A directional control valve directs the flow of hydraulic fluid within a system. It determines the path the fluid takes, enabling precise control of actuators like cylinders and motors. This control ensures efficient operation of machinery.
How do I choose the right directional control valve for my system?
I recommend evaluating key factors such as flow rate, pressure rating, material, size, and compatibility with your system. Consider the specific requirements of your application, such as industrial or automotive use, to ensure the valve meets your operational needs.
Can a directional control valve handle reverse flow?
Yes, but only under specific conditions. Reverse flow becomes possible when sufficient pilot pressure is applied to the valve’s pilot ports (V2 or V1). This pressure lifts the poppet from its seat, overcoming the cylinder port pressure and allowing reverse flow.
“Flow is allowed to pass in one direction (V1 to C1 or V2 to C2), then the valve remains closed (checked) in both reverse directions (C1 to V1 or C2 to V2) in order to hold and lock in position the cylinder or other actuators; reverse flow is possible only when sufficient pilot pressure is applied at V2 or V1, which act as cross-connected pilot ports, and the pilot piston lifts the poppet from its seat overcoming cylinder port pressure.”
What materials are commonly used in directional control valves?
Manufacturers often use stainless steel, brass, or aluminum. Stainless steel offers excellent corrosion resistance, making it ideal for harsh environments. Brass and aluminum provide lightweight options but may not withstand extreme conditions as effectively.
How often should I maintain a directional control valve?
I suggest regular maintenance based on the valve’s operating conditions. For high-pressure or demanding environments, inspect the valve more frequently. Clean the components, check for wear, and replace seals or parts as needed to ensure optimal performance.
Are directional control valves compatible with all hydraulic systems?
Not all valves fit every system. Compatibility depends on factors like size, flow rate, and pressure rating. Always verify the valve’s specifications against your system’s requirements to avoid installation challenges or performance issues.
What industries benefit the most from directional control valves?
Directional control valves serve industries like manufacturing, automotive, construction, aerospace, and agriculture. They play a critical role in systems requiring precise fluid control, such as assembly lines, hydraulic steering, and heavy machinery.
Can I use a single-spool valve for complex systems?
Single-spool valves, like the Gresen Model SP, work well for general-purpose applications. However, they may not suit complex systems requiring multiple flow paths. For such systems, I recommend multi-spool or solenoid-operated valves.
What is the difference between a 2-way and a 4-way valve?
A 2-way valve controls fluid flow in two directions, typically for simple on/off operations. A 4-way valve, like the Danfoss DG4S4, offers more flexibility by managing fluid flow in four directions. This makes it suitable for systems requiring advanced control.
Are budget-friendly valves reliable?
Yes, budget-friendly options like the Gresen Model SP can deliver reliable performance for standard applications. While they may lack advanced features, they often provide excellent value for general-purpose use. Always assess your system’s needs before choosing a valve.
