MPV SERIES MODULAR PRESSURE RELIEF VALVES DIRECT ACTING

MPV SERIES MODULAR PRESSURE RELIEF VALVES DIRECT ACTING Featured Image

Loading...

Short Description:

MPV series pressure relief valves are direct operated poppet type,it can supply overload protection for hydraulic systems

Send email to us Send email to us Download as PDF

Product Detail

Product Tags

MPV series pressure relief valves are direct operated poppet type,it can supply overload protection for hydraulic systems.

Technical data

Model	MPV
Max flow rate (L/min)	40
Operating pressure (MPa)	31.5
Valve body（Material）Surface treatment	casting phosphating surface
Oil cleanliness	NAS class 1638 and ISO4406 class 20/18/15

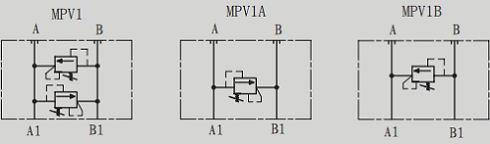

Ordering Details

External Dimensions and Fittings
